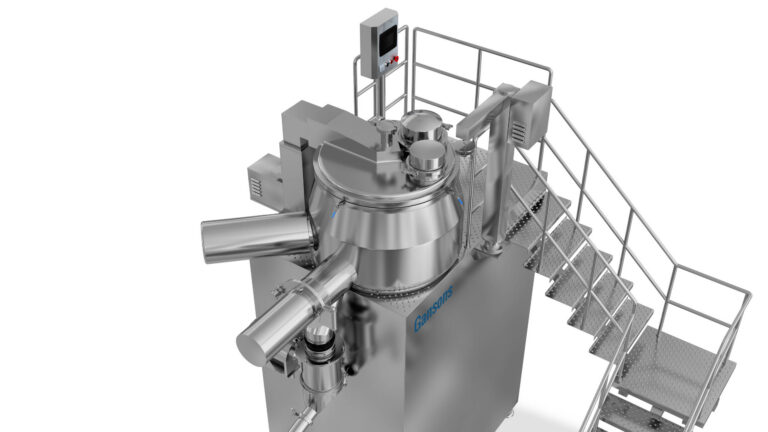

High Shear Mixer Granulator (HSMG) -Precision Wet Granulation for Regulated Pharmaceutical Manufacturing
The Gansons High Shear Mixer Granulator (HSMG) also known as Rapid Mixer Granulator (RMG) delivers precise, reproducible wet granulation for pharmaceutical, food, nutraceutical, and chemical manufacturing. Built on the patented Iwata™ impeller design developed in collaboration with Japanese mixing technologists, the Gansons HSMG transforms wet granulation from an uncertain art into an engineered, scalable, and trouble-free process.
Engineered to solve the real problems of wet granulation
Every pharmaceutical formulator knows that wet granulation is the unit operation most likely to cause unpredictable batch failures, inconsistent granule properties, and difficult scale up. The Gansons HSMG was designed specifically to address these failure modes – not to compete on specification sheets.

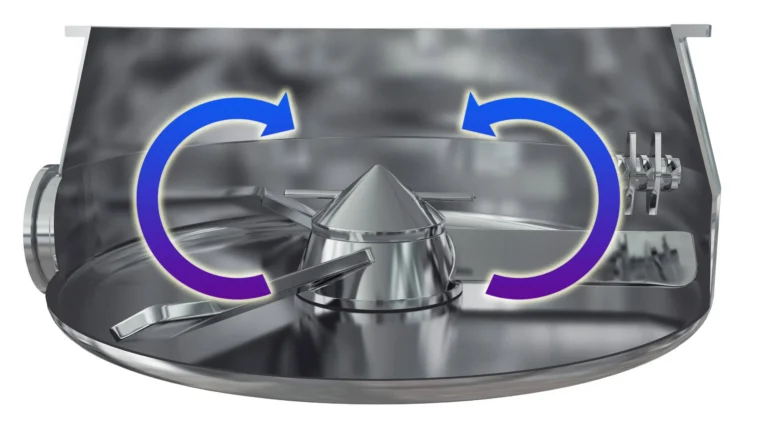

Iwata™ impeller and chopper - The precision core
The Iwata™ impeller and chopper system is the result of a dedicated collaboration between Gansons engineers and Japanese mixing technologists. It is not a standard impeller with a revised blade angle – it is a ground-up redesign of the shear and agglomeration mechanism to address the failure modes that generic RMG designs leave unresolved.
- Optimised rake angle and swept volume - ideal shear delivery at every point in the bowl
- Close tolerance design - minimises material build-up in crevices that cause black specks
- Dual-function Iwata™ chopper - simultaneous binder distribution and agglomeration
- Consistent endpoint detection - electromechanical torque monitoring, not time-based estimates
- >95% torque transmission - precision gearbox assembly for reliable energy delivery

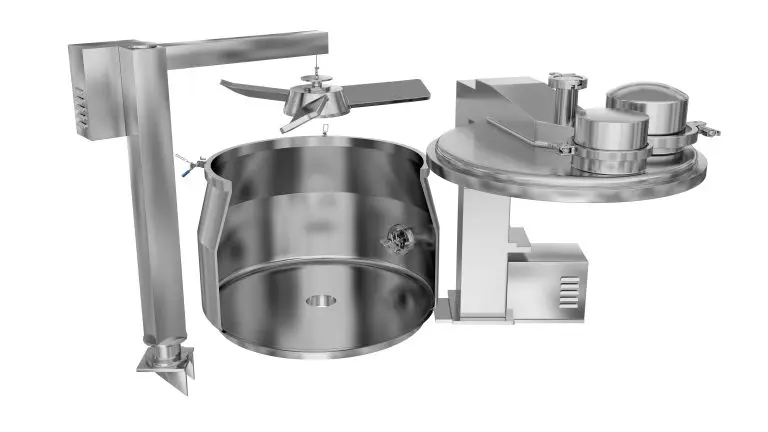

IMPELIFT™ - faster cleaning, simpler validation
The IMPELIFT™ system is a Gansons proprietary feature that raises the bottom impeller clear of the bowl floor for cleaning access – without removing the bowl. This single design decision has a compound impact on your operations:
- Cleaning time reduced - no bowl removal, no reassembly, no torque verification after reassembly
- Cross-contamination risk lower - 360-degree recipe-driven WIP spray nozzles clean in place
- Cleaning validation simplified - predictable, reproducible cleaning cycle with documented completion
- Downtime between batches shortened - single operator, validated changeover sequence
IMPELIFT™ - faster cleaning, simpler validation
The IMPELIFT™ system is a Gansons proprietary feature that raises the bottom impeller clear of the bowl floor for cleaning access – without removing the bowl. This single design decision has a compound impact on your operations:
- Cleaning time reduced - no bowl removal, no reassembly, no torque verification after reassembly
- Cross-contamination risk lower - 360-degree recipe-driven WIP spray nozzles clean in place
- Cleaning validation simplified - predictable, reproducible cleaning cycle with documented completion
- Downtime between batches shortened - single operator, validated changeover sequence
Process bowl and seal system

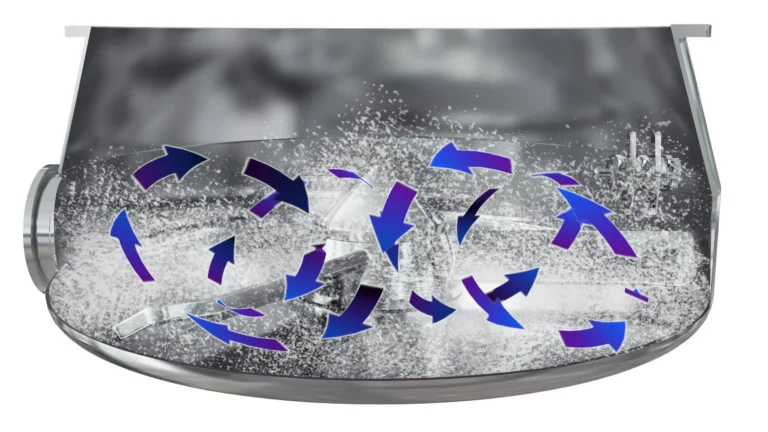

The Gansons HSMG process bowl geometry eliminates dead spots during mixing – the bowl profile actively aids product vortex into the shear zone. The proprietary mechanical seal system prevents the ingress of any particles into the impeller shaft, addressing the contamination failure mode at source.
- Dead-spot-free bowl geometry - optimised for vortex flow into the shear zone
- Proprietary shaft seal - prevents particle ingress, eliminates a contamination root cause
- Jacketed bowl option - for thermic fluid heating or cooling of temperature-sensitive formulations
- Vacuumised mixing option - for moisture-sensitive or oxygen-sensitive formulations
- 12-bar shock pressure resistance - available for explosive atmosphere process environments
Scalability and process support
Wet granulation scale-up is non-linear. The Gansons HSMG is designed with this reality in mind – and Gansons process technology team provides active scale-up support from laboratory through commercial scale:
- Lab-to-production scale-up - predictable, validated with Gansons process support
- 20 tonnes/day maximum throughput - available in high-volume commercial configurations
- Gansons process technologists - available for granulation development, troubleshooting, and tech-transfer
- Vacuum transfer integration - product discharged under vacuum to FBD without operator handling
Scalability and process support
Wet granulation scale-up is non-linear. The Gansons HSMG is designed with this reality in mind – and Gansons process technology team provides active scale-up support from laboratory through commercial scale:
- Lab-to-production scale-up - predictable, validated with Gansons process support
- 20 tonnes/day maximum throughput - available in high-volume commercial configurations
- Gansons process technologists - available for granulation development, troubleshooting, and tech-transfer
- Vacuum transfer integration - product discharged under vacuum to FBD without operator handling
Automation and Control
The Gansons HSMG automation platform is designed for pharmaceutical regulatory compliance at every level – from batch record generation to hazardous area operation:
- 21 CFR Part 11 compliance - electronic batch records, immutable audit trail, electronic signatures
- ALCOA+ data integrity - all process data attributable, contemporaneous, and audit-ready
- ATEX rated and compliant as per client configuration
- IoT enabled - real-time process analytics, remote monitoring, condition-based maintenance
- Pharma 4.0 ready - smart graphs for lot reproducibility, MES integration via OPC-UA
- Three-mode operation - with multi-level password access and role-based operator control
Capacity Range

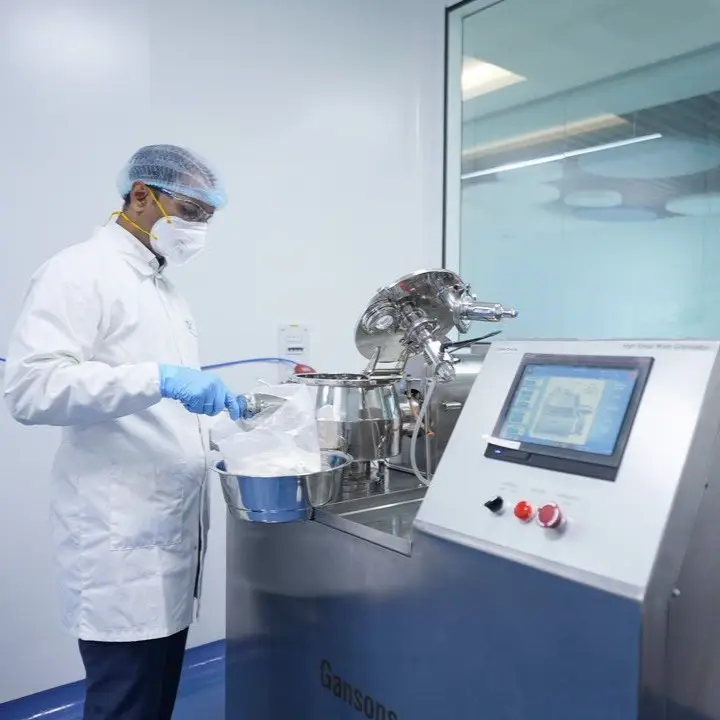

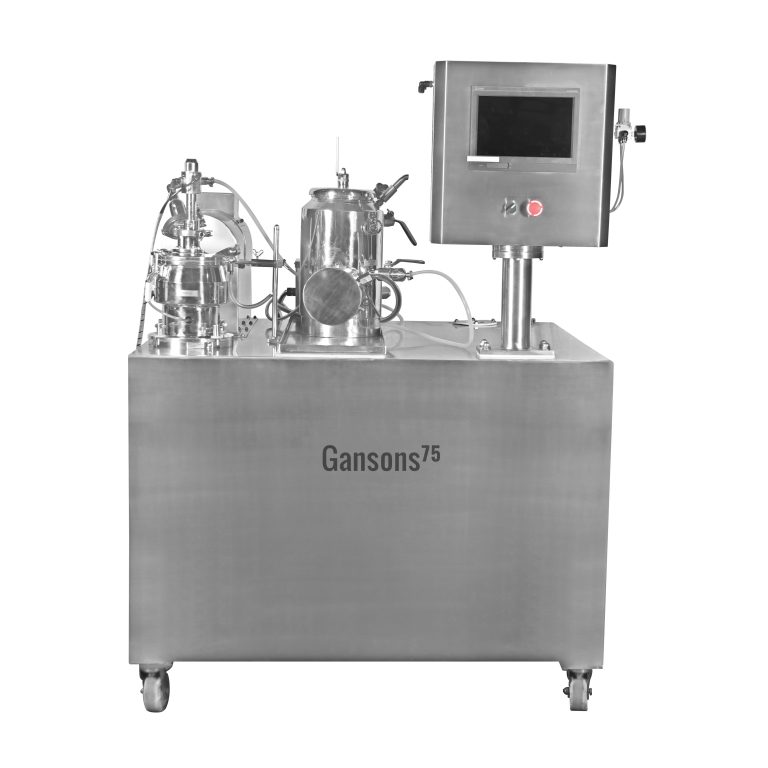

Pilot and R&D scale
0.5L to 10L
Commercial scale
20L to 2000L
Frequently asked questions -
High Shear Mixer Granulator (HSMG)
What is a High Shear Mixer Granulator (HSMG) used for in pharma?
A High Shear Mixer Granulator (HSMG) is used for wet granulation in pharmaceutical manufacturing – the process of converting fine powders into uniform, dense granules with controlled particle size and flow properties. The Gansons HSMG performs dry mixing, binder addition, wet massing, and granule formation in a single closed vessel, eliminating cross-contamination risk between process steps.
What batch sizes does the Gansons HSMG handle?
The Gansons HSMG is available from laboratory scale (as small as 1 litre) through pilot and full commercial production scale supporting up to 18 tonnes per day throughput. The system is designed for linear, predictable scale-up, with validated scalability protocols supported by Gansons’ process technology team.
Is the Gansons HSMG 21 CFR Part 11 compliant?
Yes. The Gansons HSMG automation platform is 21 CFR Part 11 compliant, with electronic batch records, immutable audit trails, role-based access control, and electronic signatures built into the control system architecture. Data integrity follows ALCOA+ principles throughout the batch cycle.
What is the Iwata™ impeller design?
The Iwata™ impeller is a patented design developed in collaboration with Japanese mixing technologists. It delivers optimised shear, compression, and material vortex for homogenous binder distribution and consistent granule density. The design eliminates bimodal powder behaviour and ensures reproducible granule endpoints regardless of operator – one of the most common sources of batch-to-batch variability in conventional RMGs.
Is the Gansons HSMG ATEX rated?
Yes. ATEX-rated (flame-proof) configurations of the Gansons HSMG are available as per client configuration. 12-bar shock pressure resistant designs are also available for processes requiring containment of explosive pressure events. All components comply with Zone 2/22 production environment requirements.
How does the HSMG prevent black specks or bimodal granule behaviour?
Black specks (caused by metal pickup from suboptimal impeller clearances) are eliminated through Gansons close-tolerance impeller design and proprietary mechanical seals that prevent particle ingress into the shaft. Bimodal behaviour is prevented by the Iwata™ chopper geometry, which ensures consistent deagglomeration and binder distribution throughout the granulation cycle.
What is the IMPELIFT™ system?
The IMPELIFT™ is a Gansons proprietary system that raises the bottom impeller clear of the bowl floor for cleaning and inspection access, without removing the bowl. This eliminates a major source of cleaning downtime, simplifies cleaning validation, and is supported by 360-degree WIP spray nozzles for in-place cleaning that can be recipe-driven and documented.
Can the Gansons HSMG be integrated into a complete granulation suite?

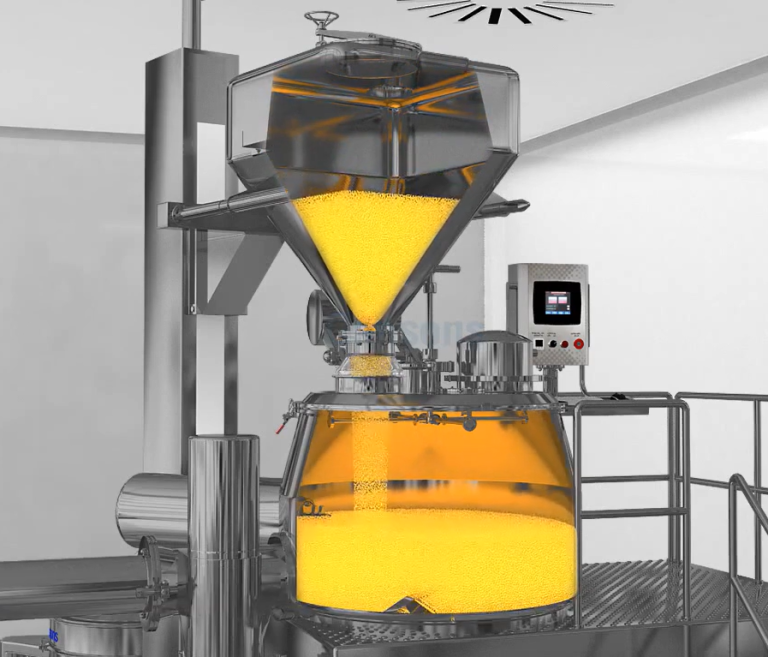

Yes. The Gansons HSMG is the core wet granulation unit within the Gansons Integrated Granulation Suite (the Force Multiplier), which also includes an inline wet mill, Fluidised Bed Dryer/Granulator, inline dry mill, lifting device, and IBC blender. The suite operates under a centralised 21 CFR Part 11 compliant automation platform for fully integrated, recipe-driven batch control.
Compliance and Certifications
Downloads
- Brochure – Gansons High Shear Mixer Granulator
