inONE^®

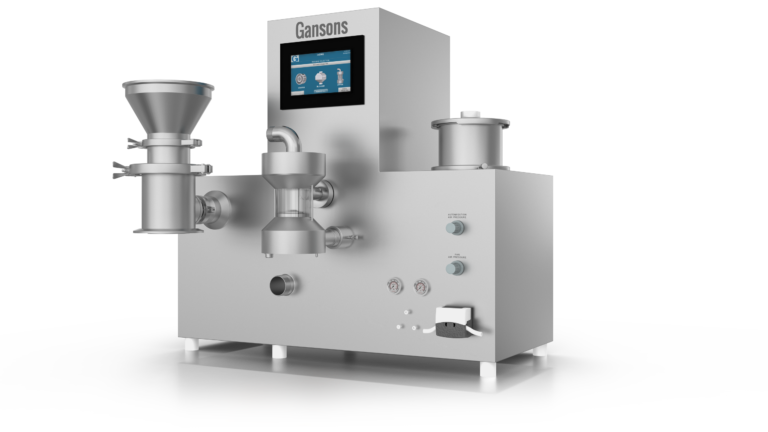

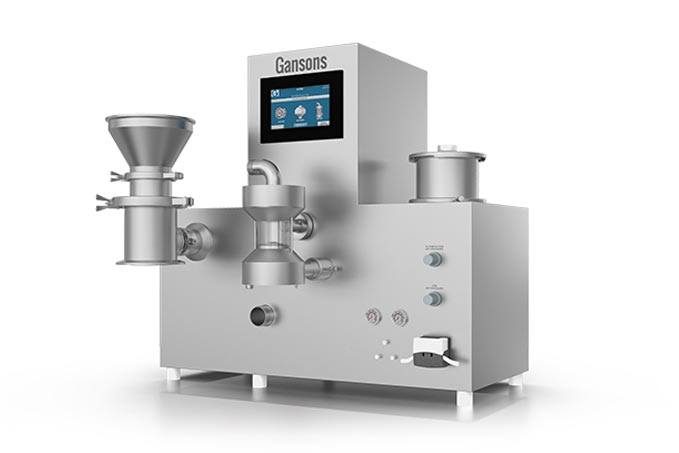

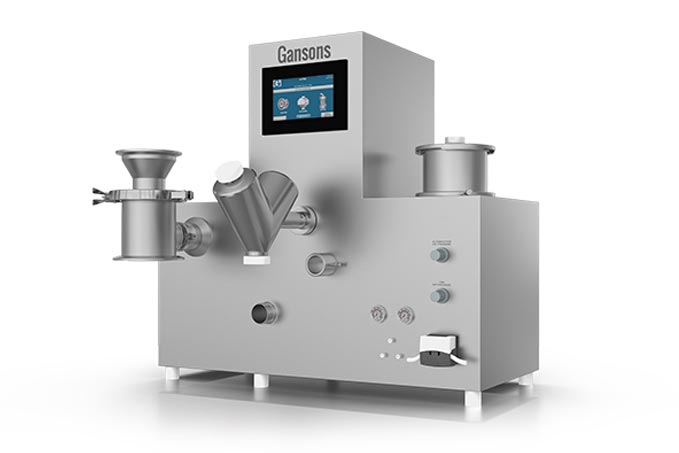

Gansons inONE^® is a breakthrough in R&D equipment for the pharmaceutical industry. This modular, portable R&D laboratory equipment combines up to 13 processes in one compact unit, including tablet coating, drying, milling, sifting and blending making it ideal for the development of powders, granules and solid dosage forms. solid dosage forms.

Minimum Lot Size

40 g

Maximum lot size

5 kg

Processes in 1 machine

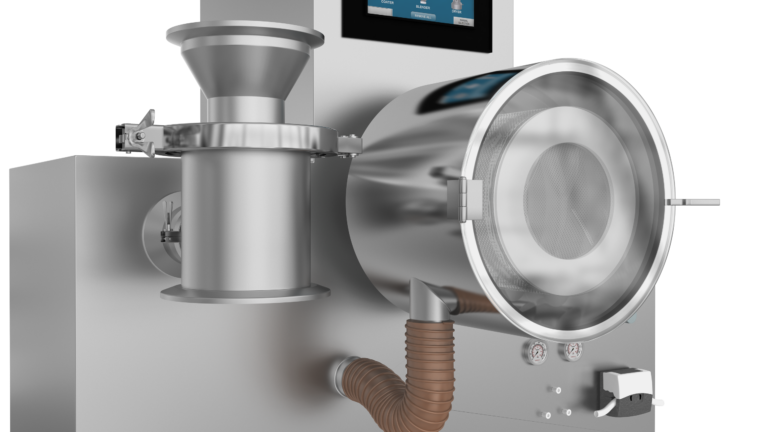

The Ganscoater^®

Geared to handle lots of 50g to 5kg. Featuring the R-mini nozzle, the laboratory-scale of Gansons proprietary GHPN III^RD nozzle, Gansons OEM peristaltic pump, Gansons proprietary baffles and signature smooth, perforated pan.

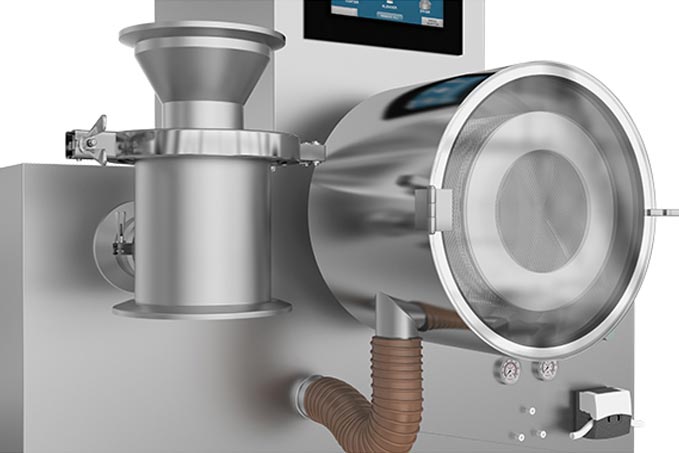

The Ganscoater^®

Geared to handle lots of 50g to 2kg. Featuring the R-mini nozzle, the laboratory-scale of Gansons’ proprietary GHPN III^RD nozzle, Gansons OEM peristaltic pump, Gansons proprietary baffles and signature smooth, perforated pan.

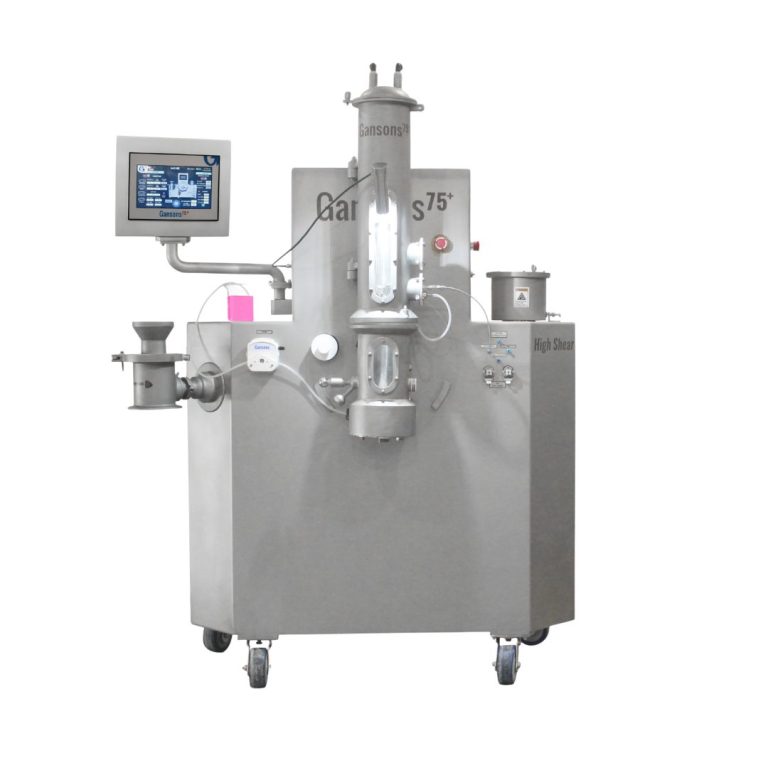

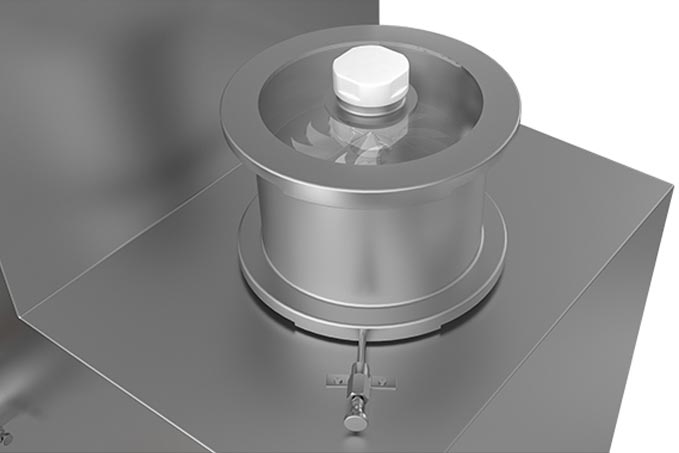

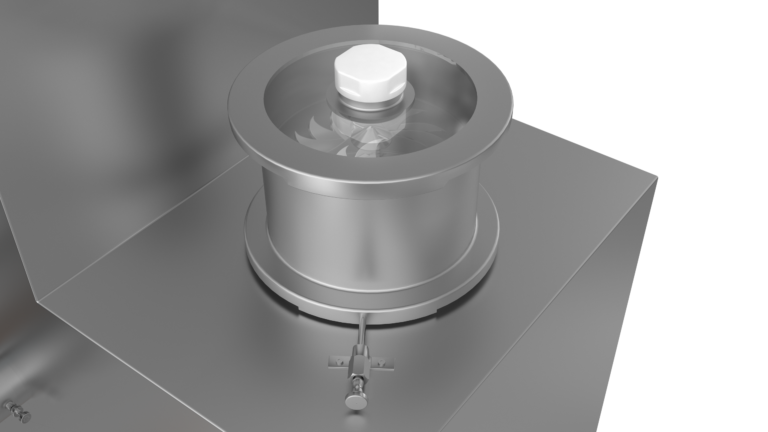

Gansons High Shear Mixer Granulator and SuperGran^®

For wet granulation, the inONE^® is equipped with Gansons High Shear Mixer Granulator of 0.5 L capacity. Our proprietary impeller design allows homogenous mixing and incorporation of binder for uniform granulation, that can be scaled up to pilot batches and beyond.

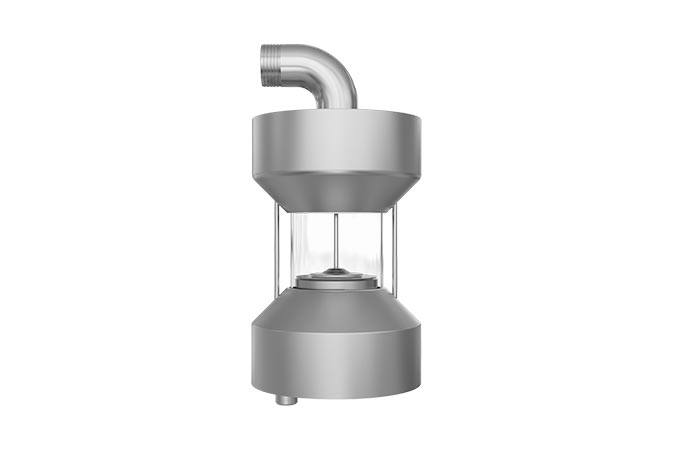

Gansons Fluidized Bed Dryer with Cyklon^® Air Distribution System

The Gansons Fluid Bed Dryer comes powered with the global cutting edge in drying technology – Cyklon^® Air Distributor System. The concentric rings with air-guiding channels on their underside provide a horizontal, spiral motion to the inlet drying air. The substrate is gently fluidized into a cyclonic pattern. This motion yields the following results:

Gansons Fluidized Bed Dryer with Cyklon^® Air Distribution System

The Gansons Fluid Bed Dryer comes powered with the global cutting edge in drying technology – Cyklon® Air Distributor System. The concentric rings with air-guiding channels on their underside provide a horizontal, spiral motion to the inlet drying air. The substrate is gently fluidized into a cyclonic pattern. This motion yields the following results:

Drying at a fraction of the time compared to standard perforated air distributor plates: maximum drying efficiency
Less inter-particle attrition means less granule breakage
Push-pull system for controlled fluidization
Uniform drying for sharper end point detection

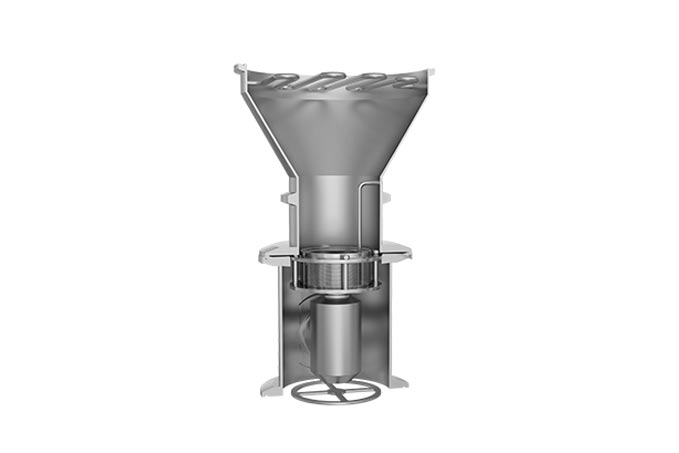

Hanningfield Uni-Mill^®

A simple and versatile system integrated with the Gansons inONE^® for particle sizing. The particle sizing Hanningfield Uni-Mill^® has a gearbox-driven impeller, rotating inside a conical screen. This principle achieves comminution primarily by compression and shearing of the particles between the impeller and surface of the screen. The detachable mill head can be autoclaved or interchanged with the sifter head for sizing.

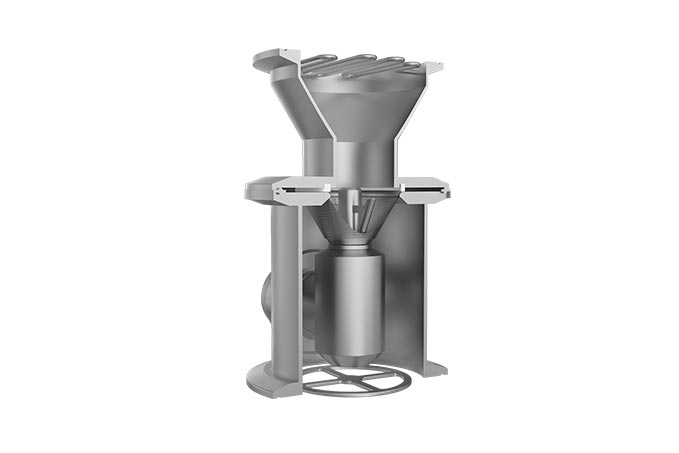

Hanningfield Kwik-Sift^®

The gentle centrifugal sifting rapidly separates undersized and oversized particles. The effective sifting action can separate extraneous material as fine as a human hair strand! The spoiler arm also gently delumps cohesive powders.

Hanningfield Kwik-Sift^®

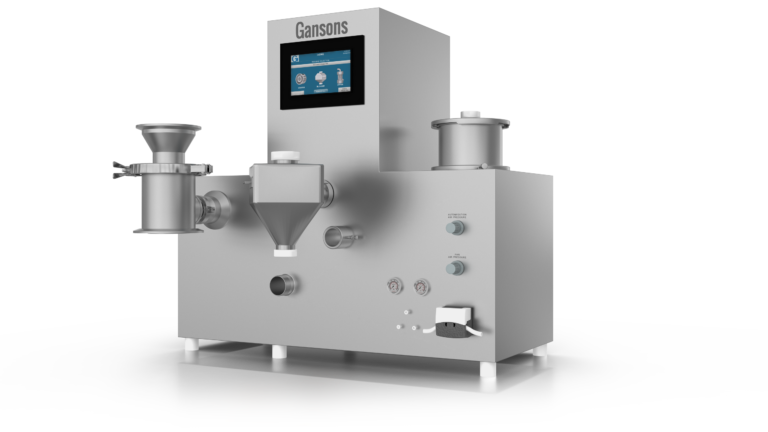

Gansons Blenders

The Gansons Blenders are suitable for diffusion blending of material. This is a contained, totally dust free system. The geometry of the blenders has been optimized based on the angles of repose of the most widely used excipients in pharmaceutical industry. Four blender types can be interchangeably used on the central drive. The customer may specify the types of blenders provided: V-Blender, Double-Cone Blender, Bin Blender, Octagonal Blender.

Other Features

In-built Air Handling Unit
Isolator Compatible: Suitable for oncological and hormonal products.
Safety: Appropriate precautions have been taken to ensure the Gansons inONE^® is safe to use over long, continual operation. Several safety interlocks have been put in place to mitigate risk to the operator and product with the help of limit switches, sensors, and intelligent software.
Uniform drying for sharper end point detection

Other Features

In-built Air Handling Unit
Isolator Compatible: Suitable for oncological and hormonal products.
Safety: Appropriate precautions have been taken to ensure the Gansons inONE^RD is safe to use over long, continual operation. Several safety interlocks have been put in place to mitigate risk to the operator and product with the help of limit switches, sensors, and intelligent software.
